Chinese Supplier Glass Fiber Single End Roving for High Pressure Pipes

Short Description:

The Glass Fiber Single End Roving has Fast Wet-out, Low Fuzz, excellent corrosion resistance and high mechanical properties.

Acceptance: OEM/ODM, Wholesale, Trade

Payment: T/T, L/C, PayPal

Our factory has been producing fiberglass since 1999.

We want to be your best choice and your absolutely reliable business partner.

Any inquiries we are happy to reply, please feel free to send your questions and orders.

Product Code: 920-600/1200/2400

Send email to us Phone Whatsapp

Product Detail

Product Tags

Product Features

▲ The Glass Fiber Single End Roving has Dedicated Epoxy Sizing and special Silane system for Filament winding process.

▲ The Glass Fiber Single End Roving has Fast Wet-out, Low Fuzz, excellent corrosion resistance and high mechanical properties

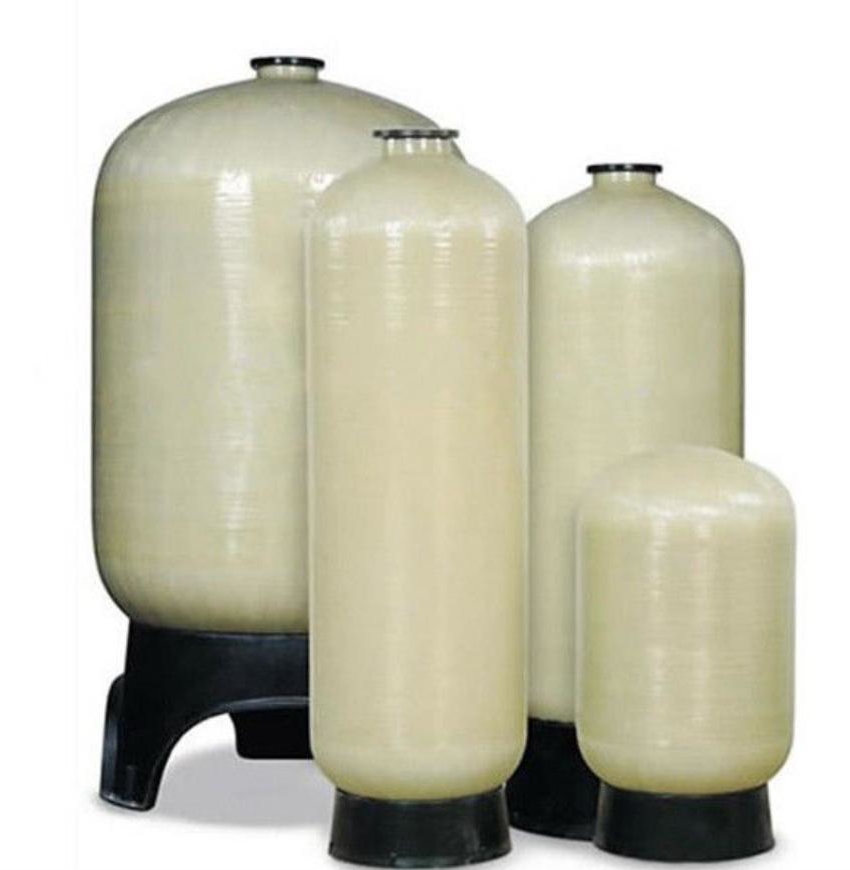

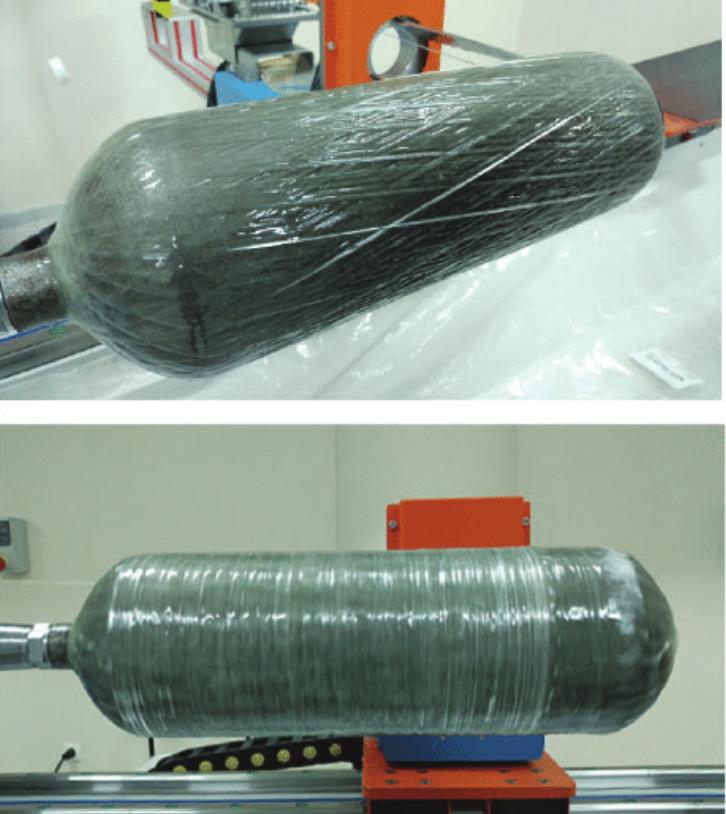

▲ The Glass Fiber Single End Roving is designed for epoxy filament winding process.suitable for epoxy anhydride curing and amine curing system. lt is used for High pressure pipes, CNG tank, water pipes and tanks application Superior electrical insulation.

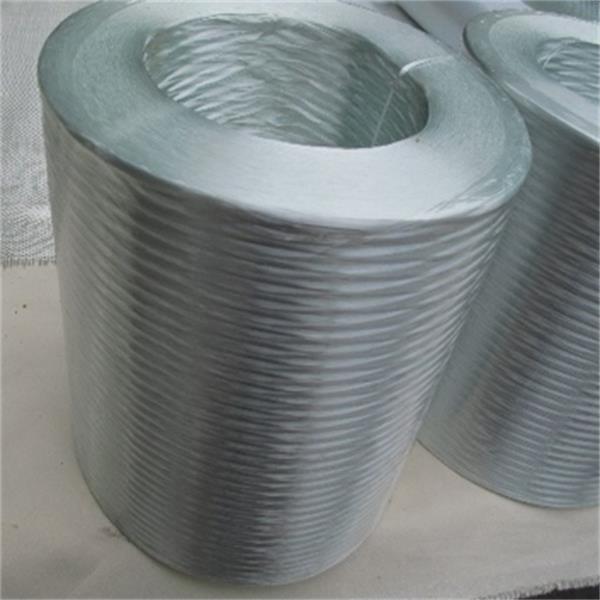

Single End Roving for High Pressure Pipes1

Single End Roving for High Pressure Pipes2

Technical Properties

Product code	Filament diameter (um)	Liner density (tex)	Moisture content (％)	LOI (％)	Tensile strength (N/tex)
SL920-600	13	600 ±5%	≤ 0.10	0.50±0.15	≥0.40
SL920-1200	13	1200 ±5%
SL920-2400	14-17	2400 ±5%

Packaging

Packing Way

Net Weight（kg）

Pallet Size（mm）

Pallet

1000-1100 (64 bobbins)

800-900 (48 bobbins)

1120*1120*1200

1120*1120*960

Each bobbin of The Glass Fiber Single End Roving is wrapped by a PVC shrink bag. If required, each bobbin could be packed into a suitable cardboard box. Each pallet contains 3 or 4 layers, and each layer contain 16 bobbins (4*4). Each 20ft container normally loads 10 small pallets (3 layers) and 10 big pallets (4 layers). The bobbins in the pallet could be singly piled or be connected as start to end by air spliced or by manual knots.

Storage Items

♦ The Glass Fiber Single End Roving should be stored in cool and dry area Recommended temperature range is around 10-30℃, and humidity should be 35 -65%. Be sure to protect the product from the weather and other sources of water.

♦ The Glass Fiber Single End Roving must remain in their original packaging material until the point of usage.
