Polyurethane(pu) Coated Fiberglass Cloth Fire Resistant Cloth Heat Resistant

Short Description:

TGF1920 is a heavy weight woven texturized fiberglass fabric. It’s designed for the manufacturer of removable jacket, thermal insulation covers, padding, lagging, heavy duty welding blanket and other fire control system.

Our factory has been producing fiberglass since 1999.Acceptance: OEM/ODM, Wholesale, Trade,

Payment: T/T, L/C, PayPal

Our factory has been producing Fiberglass since 1999.We want to be your best choice and your absolutely reliable business partner.

Please feel free to send your questions and orders.


Product Detail

Product Tags

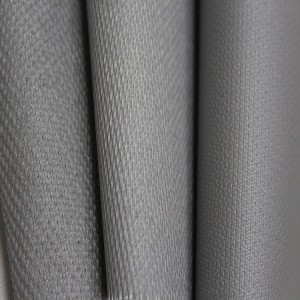

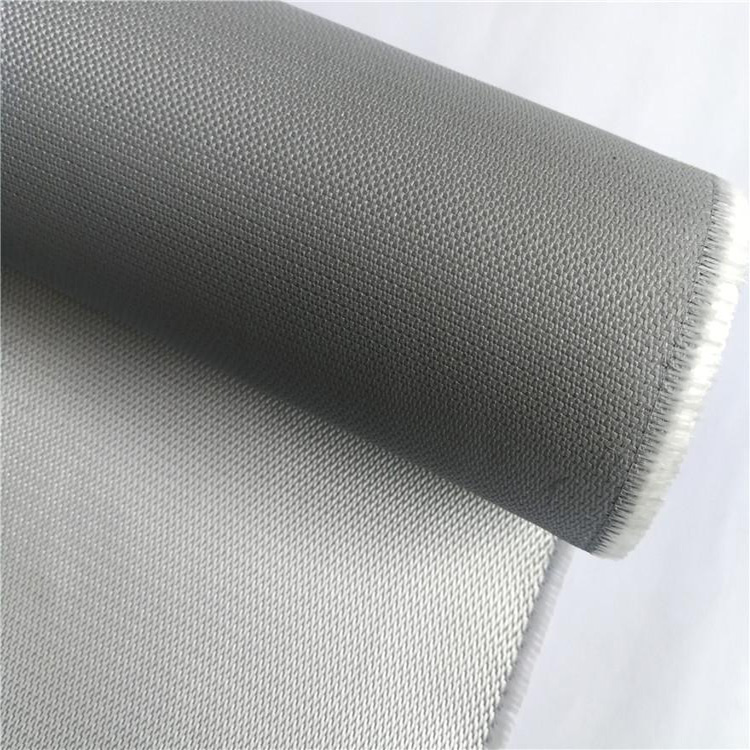

Product Display

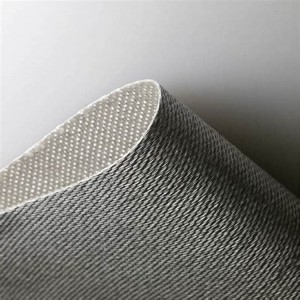

PU4

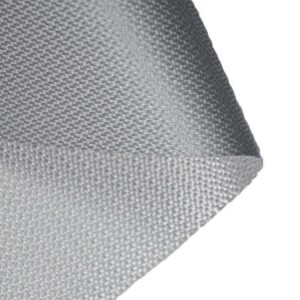

PU5

Product Application

PU coated glass fiber cloth is fiberglass cloth coated with flame retarded PU (polyurethane) on one-sided or double-sided surface. PU coating imparts glass fiber cloth good weave setting (high stability) and water resistance properties. Suntex Polyurethane PU coated glass fiber cloth can withstand a continuous working temperature of 550C and a short duration working temperature of 600C. Compared with basic woven glass fiber fabric, It has many good features such as good air gas sealing, fire resistant, abrasion resistance, oils, solvents resistance chemical resistant ability, no skin irritation, halogen free. Can be used in fire and smoke applications, such as welding blanket, fire blanket, fire curtain, fabric air distribution ducts, fabric duct connector. Suntex can offer polyurethane coated fabric with different colors, thickness, widths.

Main Applications of polyurethane(PU) coated glass fiber cloth
-Fabric air distribution ducts
-Fabric ductwork connector
-Fire doors & Fire curtains
-Removable insulation cover
-Welding blankets
-Other fire and smoke control systems

Specification and Physical Properties



(Metric)

(English) Test methods
Weave 1/3 twill Double weft 1/3 twill Double weft
Yarn
Warp

ET9 850 tex

ETG 5.88
Weft

ET9 850 tex

ETG 5.88
Construction
Warp

10 ± 0.5 ends/cm

25 ± 1 ends/inch ASTM D 3775-96
Weft 11.8 ± 0.2 picks/cm 30 ± 1 picks/inch ASTM D 3775-96
Weight

1920 ± 60 g/m2

56.47 ± 1.7 oz/yd2

ASTM D3776-96
Thickness

2.0 ± 0.2 mm

0.079 ± 0.007 inch

ASTM D1777-96
  101.6 ± 1 cm 40 ± 0.39 inch
Standard width 152.4 ± 1 cm 60 ± 0.39 inch ASTM D3776-96


183 ± 1 cm

72 ± 0.39 inch
Tensile strength
Warp

3407 N/5 cm

389 lbf/inch ASTM D5034-95
Weft

2041 N/5 cm

223 lbf/inch ASTM D5034-95
Temp resistance

5500C

10000F



Packing

Polyurethane(PU) coated fiberglass cloth rolls packed in cartons loaded on pallets or according to customers' requirements.

Product Storage and Transportation

Unless otherwise specified, the fiberglass products should be stored in a dry, cool and moisture proof area. Best used within 12 months after production date. They should remain in their original packaging until just prior to use. The products are suitable for delivery by the way of ship, train, or truck.
