1k/3k/6k/12k T300 T700 80-320gsm Plain And Twill High Strength Wide Carbon Fiber Fabrics

Short Description:

Our carbon fiber fabric is a high-quality product made from Chinese carbon aramid hybrid fabric and carbon fiber braided rolls. Our fabric roll widths are available from 1000mm to 1700mm, and OEM/ODM services are available. As a carbon fibre supplier, we are committed to providing high quality carbon fibre fabrics, as well as 1k/3k/6k/12k carbon fibre fabrics in different sizes, such as T300 and T700.
Technics:woven
Weight:80-320gsm
Product Type:Carbon Fiber Fabric
Weave:1k/3k/6k/12k
Color:Black
Application: UAV, model airplane, Racket, Car refitting,Ship,mobile phone case, jewelry box, etc
Surface: Twill/Plain
Shape: Roll
Width:1000-1700mm
Length:customized

Acceptance: OEM/ODM, Wholesale, Trade

Payment: T/T, L/C, PayPal

Our factory has been producing fiberglass since 1999.

We want to be your best choice and your absolutely reliable business partner.

Please feel free to send your questions and orders.


Product Detail

Product Tags

Product Display

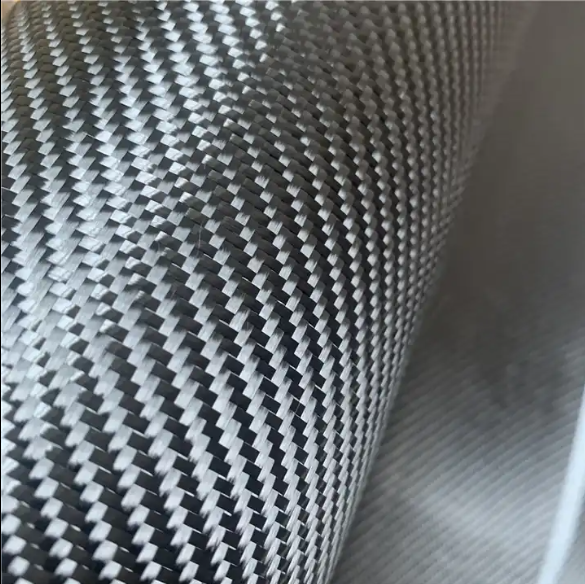

carbon fiber fabric twill

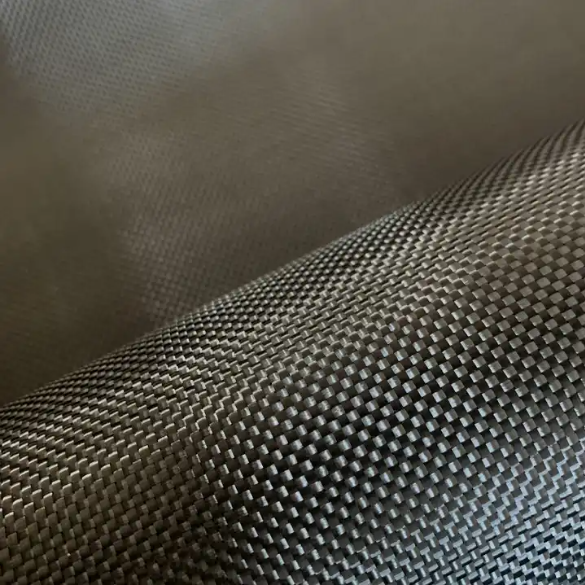

carbon fiber fabric1

Product Application

Carbon Fabric is widely used in boat.aircraft,automotive,surfboard...

1. Light weight, easy to construct, and little increasing the weight on constructed based materials.
2. Soft, free to cut, is suitable for a variety of shapes structures, and have close adhesion with reinforced concrete surface.
3. The thickness is small, so it is easy to overlap.
4. High tensile strength, high flexibility, and have the same effect as to use steel plate reinforcement.
5. Anti-acid and alkali, corrosion resistance, and can be used in any harsh environment.
6.The supporting epoxy resin impregnated adhesive (recommended our company matching epoxy adhesive)have good permeability, the construction is simple and time required is short.
7. Non-toxic, non-irritating odor, living still in construction.
8. Carbon fiber sheet has high tensile strength, which is equivalent 10 - 15 times to ordinary steel.

Specification and Physical Properties

Product

Weaving pattern

Gram Per Square Meter

Carbon Fiber Type

Thickness

Width

JHC100P

Plain

100 g/m2

1K, T300

0.12mm

1000-1700mm

JHC160P/T

Plain/twill

160 g/m2

3K, T300

0.18mm

1000-1700mm

JHC200P/T

Plain/twill

200 g/m2

3K, T300

0.22mm

1000-1700mm

JHC220P/T

Plain/twill

220 g/m2

3K, T300

0.24mm

1000-1700mm

JHC240P/T

Plain/twill

240 g/m2

3K, T300

0.26mm

1000-1700mm

JHC280P/T

Plain/twill

280 g/m2

3K, T300

0.30mm

1000-1700mm

JHC320P/T

Plain/twill

320 g/m2

6K, T300

0.34mm

1000-1700mm

JHC400P/T

Plain/twill

400 g/m2

12K,T700

0.45mm

1000-1700mm

JHC450P/T

Plain/twill

450 g/m2

12K,T700

0.50mm

1000-1700mm

JHC640P/T

Plain/twill

640 g/m2

12K,T700

0.80mm

1000-1700mm

JHCS80P

Plain

80 g/m2

12K,T700

0.10mm

1000-1700mm

JHCS160P

Plain

160 g/m2

12K,T700

0.20mm

1000-1700mm

Packing

Standard packaging:
1m x 100m/roll --- rolled on 3" cardboard tube, put in plastic bag
1roll/carton box --- Dimession: 28cm x 28cm x 108cm
16ctns/pallet --- Size: 112cm x 112cm x 128cm
It also can be packaged according to customer's request

Product Storage and Transportation

Unless otherwise specified, the carbon fabric products should be stored in a dry, cool and moisture proof area. Best used within 12 months after production date. They should remain in their original packaging until just prior to use. The products are suitable for delivery by the way of ship, train, or truck.
