High temperature resistant Insulation Fireproof Soundproof Glass Fiber Felt Fiberglass Needle Mat

Short Description:

Product name:Fiberglass needle mat

Thickness: 3mm~30mm

Density:100-300kg/m3

Heat resisting Below: 800C.

Application:Board, Building,pipeline,converter,Marine industrial, home appliances.

Our factory has been producing fiberglass since 1999.

Acceptance: OEM/ODM, Wholesale, Trade,

Payment: T/T, L/C, PayPal

Our factory has been producing Fiberglass since 1999.We want to be your best choice and your absolutely reliable business partner.

Please feel free to send your questions and orders.

Send email to us Phone Whatsapp

Product Detail

Product Tags

Product Display

Product Application

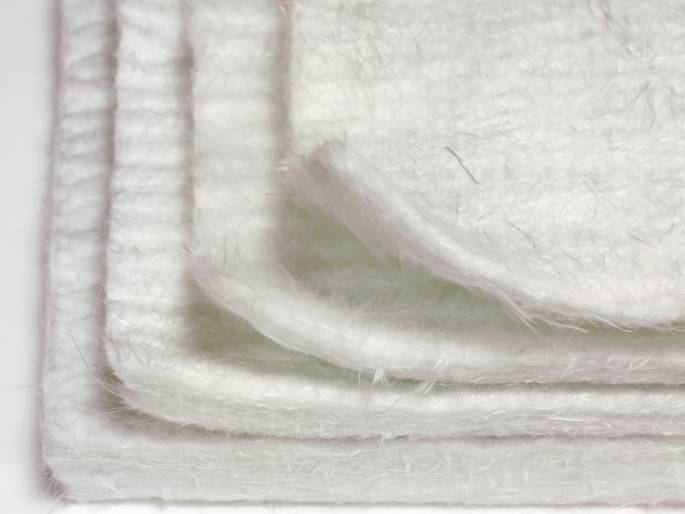

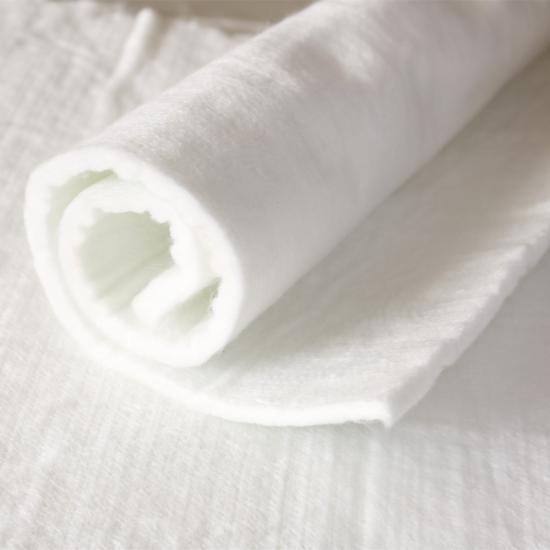

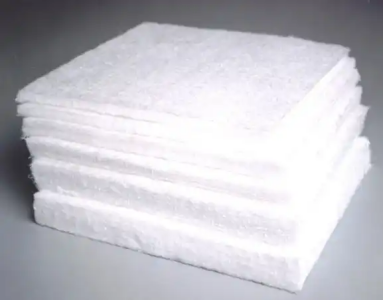

Fiberglass Needle Mat
Various kinds of Fiberglass Needle Mat are available. Specification: 450-3750g/m2,Width: 1000-3000mm, thickness: 3-25 mm.
The E-glass Fiberglass Needle Mat is made of E glass fiber with finer filament by needle mat manufacturing machine.Tiny voids formed in the manufacturing process impart excellent heat insulation property to the product. The non-binder content insulation and electrical properties of E glass make the fiberglass needle mat an out-standing and environmental friendly product within the insulation material field.

Application：

1. Shipbuilding industry, steel, aluminum, petrochemical, electric power, chemical pipeline insulation materials
2. Automobile and motorcycle exhaust system, hood, seats and other heat insulation sound-absorbing materials
3. Construction: roof, exterior wall, interior wall, floor board, elevator shaft insulation sound-absorbing material
4. Air conditioning, household appliances (dishwasher, microwave oven, bread machine, etc.) heat insulation materials
5. Thermoplastic profile molding plastic (GMT) and polypropylene sheet reinforced substrate
6. Mechanical, electronic, equipment, generator set noise insulation material
7. Industrial furnace, thermal insulation materials for thermal equipment

Specification and Physical Properties

Product Type	Thickness (mm)	Width (mm)	Bulk Density (kg/m3)	Weight (kg/roll)	Length (m)
EMC450-1000-3	3	1000-3000	100-150	----	As per require
EMC600-1000-4	4	1000-3000	100-150	----	As per require
EMC750-1000-5	5	1000-3000	100-150	----	As per require
EMC900-1000-6	6	1000-3000	100-150	----	As per require
EMC1200-1000-8	8	1000-3000	100-150	----	As per require
EMC1500-1000-10	10	1000-3000	120-180	----	As per require
EMC1800-1000-12	12	1000-3000	120-180	----	As per require
EMC2250-1000-15	15	1000-3000	120-180	----	As per require
EMC3750-1000-25	25	1000-3000	120-180	----	As per require

Properties
* Low heat conduction coefficient, excellent heat insulation performance.
* High service temperature of 500 to 700°C.
* Made of inorganic fiber which is fire retardant, no toxic gases emission in fire.
* Excellent chemical stability, no water adsorption, etching and mildewing.

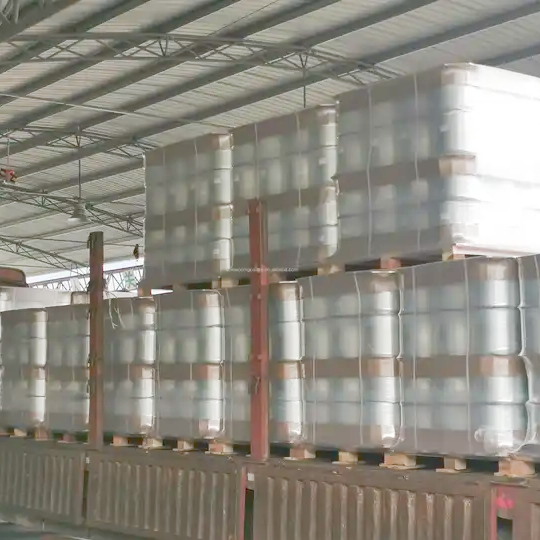

Packing

1)carton
2)with pallet
Note: the thickness, width, bulk density and length can be specified by customers. The weight and the length of the roll are calculated based on 550mm outer roll diameter.

Product Storage and Transportation

Unless otherwise specified, the fiberglass needle mat products should be stored in a dry, cool and moisture proof area. Best used within 12 months after production date. They should remain in their original packaging until just prior to use. The products are suitable for delivery by the way of ship, train, or truck.
