1K means 1 carbon yarn contains 1000 filaments, 2K means 2000 filaments, and so on. We have 1K/3K/6K/12K carbon fiber fabric.
|
Type
|
Yarn
|
Weave
|
Fiber count(10mm)
|
Width(mm)
|
Thickness(mm)
|
Weight(g/m2)
|
|
Warp
|
Weft
|
Warp
|
Weft
|
|
D1K-CP120
|
1K
|
1K
|
Plain
|
9
|
9
|
100-3000
|
0.19
|
120
|
|
D1K-CT120
|
1K
|
1K
|
Twill
|
9
|
9
|
100-3000
|
0.19
|
120
|
|
D3K-CP200
|
3K
|
3K
|
Plain
|
5
|
5
|
100-3000
|
0.26
|
200
|
|
D3K-CT200
|
3K
|
3K
|
Twill
|
5
|
5
|
100-3000
|
0.26
|
200
|
|
D3K-CP240
|
3K
|
3K
|
Plain
|
6
|
6
|
100-3000
|
0.32
|
240
|
|
D3K-CT240
|
3K
|
3K
|
Twill
|
6
|
6
|
100-3000
|
0.32
|
240
|
|
D6K-CP320
|
6K
|
6K
|
Plain
|
4
|
4
|
100-3000
|
0.42
|
320
|
|
D6K-CT320
|
6K
|
6K
|
Twill
|
4
|
4
|
100-3000
|
0.42
|
320
|
|
D6K-CP360
|
6K
|
6K
|
Plain
|
4.5
|
4.5
|
100-3000
|
0.48
|
360
|
|
D6K-CT360
|
6K
|
6K
|
Twill
|
4.5
|
4.5
|
100-3000
|
0.48
|
360
|
|
D12K-CP400
|
12K
|
12K
|
Plain
|
2.5
|
2.5
|
100-3000
|
0.53
|
400
|
|
D12K-CT400
|
12K
|
12K
|
Twill
|
2.5
|
2.5
|
100-3000
|
0.53
|
400
|
|
D12K-CP480
|
12K
|
12K
|
Plain
|
3
|
3
|
100-3000
|
0.64
|
480
|
|
D12K-CT480
|
12K
|
12K
|
Twill
|
3
|
3
|
100-3000
|
0.64
|
480
|

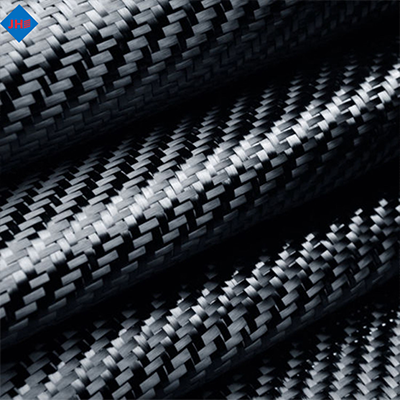

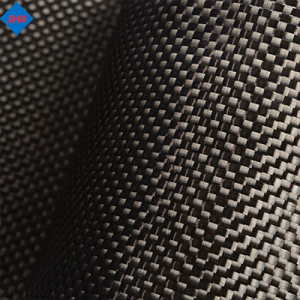

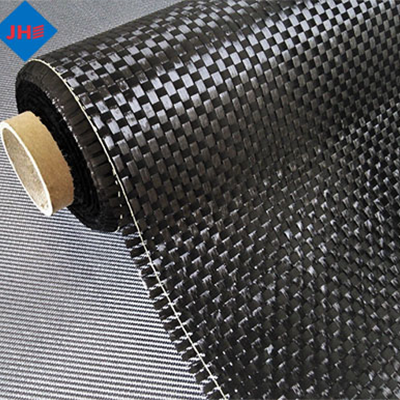

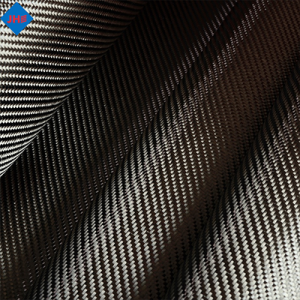

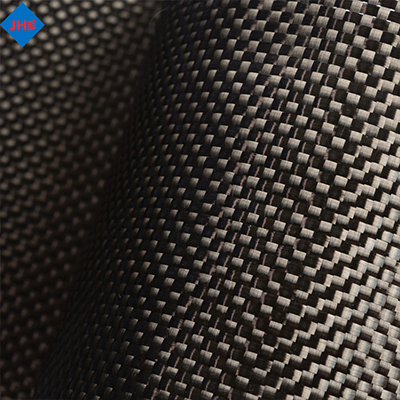

The two-way cabon fiber fabric are woven with Plain and Twill style, we have 120gsm, 140gsm, 200gsm, 240gsm, 280gsm,320gsm,400gsm, 480gsm,640gsm for choosing.Some commonly used types of weave are twill, plain and satin. Compared with traditional meterial, carbon fiber fabric has manyadvantages such as high stiffness, high tensile strength, low weight, high temperature tolerance and low thermal expansion.These make the weight greatly reduced. Meanwhile, carbon fiber fabrics are compatible with various resin systems including epoxy,polyester and vinyl ester resins. With a light weight, high strength, high modulus, fatigue resistance, heat resistance, corrosion resistance, drug resistance,electrical conductivity, X-ray penetrability, the carbon fiber fabrics are mainly used in aircraft, tail and body: auto engine,synchronous, machine covers, bumpers, trimming ; Bicycle frames, faucets bat, the sound, Kayaks, skis, various models, skull,building reinforcing, watches, pens, bags and so on.
