Electronic Grade Fiberglass Yarn

Short Description:

Our Electronic Grade Fiberglass Yarn mainly used for manufacturing Copper-clad laminate base cloth for printed wiring boards, electrical insulation materials, environmentally friendly filtration materials and high-strength, high-modulus composite materials.




Product Detail

Product Tags

Product Description

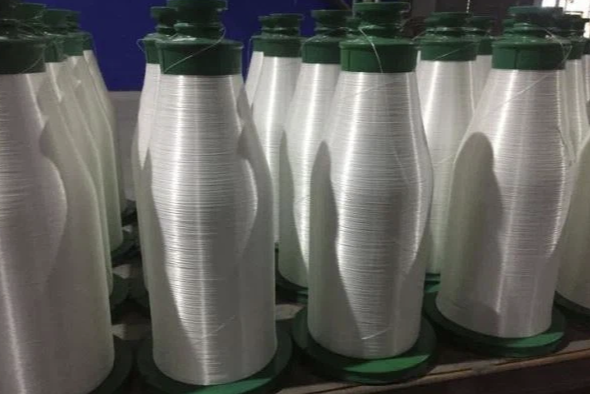

Electronic grade glass fiber spun yarn is usually made from high purity glass raw material with low twist, low bubble content and high strength. It typically ranges in diameter from a few microns to tens of microns, with varying fiber lengths that can be customized for different applications. Spun electronic grade glass fiber can also be blended with other materials, such as polymers like polyimide (PI), to increase its electrical conductivity and mechanical strength.

Specification and Physical Properties

Specifications

Product code

Nominal Diameter of Single Fiber

Nominal Density

Twist

Breaking Strength

Water content <%

E225

7

22

0.7Z

0.4

0.15

G37

9

136

0.7Z

0.4

0.15

G75

9

68

0.7Z

0.4

0.15

G150

9

34

0.7Z

0.4

0.15

EC9-540

9

54

0.7Z

0.4

0.2

EC9-128

9

128

1.0Z

0.48

0.2

EC9-96

9

96

1.0Z

0.48

0.2

Properties

Ultra-fine fiber diameter, ultra-high fiber breaking strength, good temperature resistance and electrical insulation properties.

Application

Electronic grade spun glass fiber is a high purity spun glass fiber, the main applications can be summarized as follows:
1. Reinforcement materials for printed circuit boards (PCBs) and electronic components;
2. cable insulation
3. component manufacturing in the aerospace field
4. manufacturing of components for the automotive industry
5. structural reinforcement materials in the construction field.
It is also widely used in aerospace, aviation, defense and other high-tech fields to meet the needs of high precision, high strength, high temperature, high pressure and other extreme environments.

WX20241031-174829

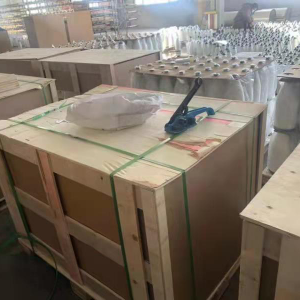

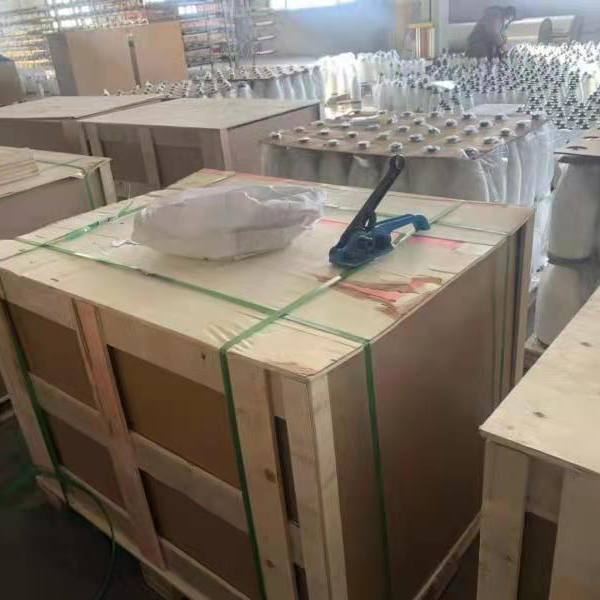

Packing

Each bobbin is packed in a polyethylene bag and then packed in a carton with dimensions of 470x370x255mm with dividers and base plates to prevent damage to the product during transportation. Or according to customer's requirement.



Product Storage and Transportation

Unless otherwise specified, the fiberglass products should be stored in a dry, cool and moisture proof area. Best used within 12 months after production date.They should remain in their original packaging until just prior to use.The products are suitable for delivery by the way of ship, train, or truck.
